Testors Italeri 1/35 M47 Patton, Cold War, USAREUR


Stikpusher
 Share

Recommended Posts

And the painting begins. Today I airbrushed on a coat of gray Tamiya primer overall followed by Tamiya white primer on the areas that will be white. I’ll let it dry overnite, then start actual painting tomorrow.

3650-DBE5-6-F85-4-AE9-9100-FE4-A283-E291

  • Like 3
Link to comment
Share on other sites

  • 2 weeks later...

I’ve got all the base colors on the power pack now. Just need a wash and then I can install it and get the hull assembly completed.

3-F5-D9-E83-8-DF6-4-BC3-B08-D-8876-E9-D5

  • Like 1
Link to comment
Share on other sites

Wash on and cleaned up, then power pack installed.

F57-C137-B-EA46-431-C-9040-111-BBD93-E29

and what will be visible....

F6-ED2646-FEFF-427-D-8-BB1-2-FD771-F5-DA

Time to get this one moving forward past this stage.

  • Like 1
Link to comment
Share on other sites

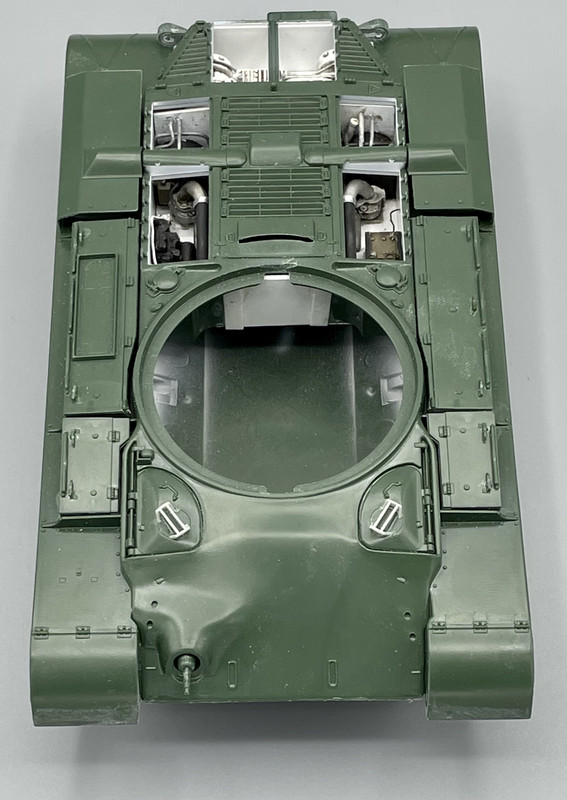

Today I got the upper hull glued in place. Starting to look like a tank now!

CE46-AE12-98-B6-48-FF-8-B43-E761-F1929-F

4943-B571-C964-471-E-9-A48-567419025630.

 I need to deal with one seam on the bottom rear and then I can add all of the last little bits to complete the hull

  • Like 1
Link to comment
Share on other sites

  • 2 weeks later...

Back in the saddle on this one today

I added the small bits to the rear of the hull

3788-BDF4-DD66-4-B04-9-C1-A-66-D4-EDF85-

and began adding the small bits to the front of the hull

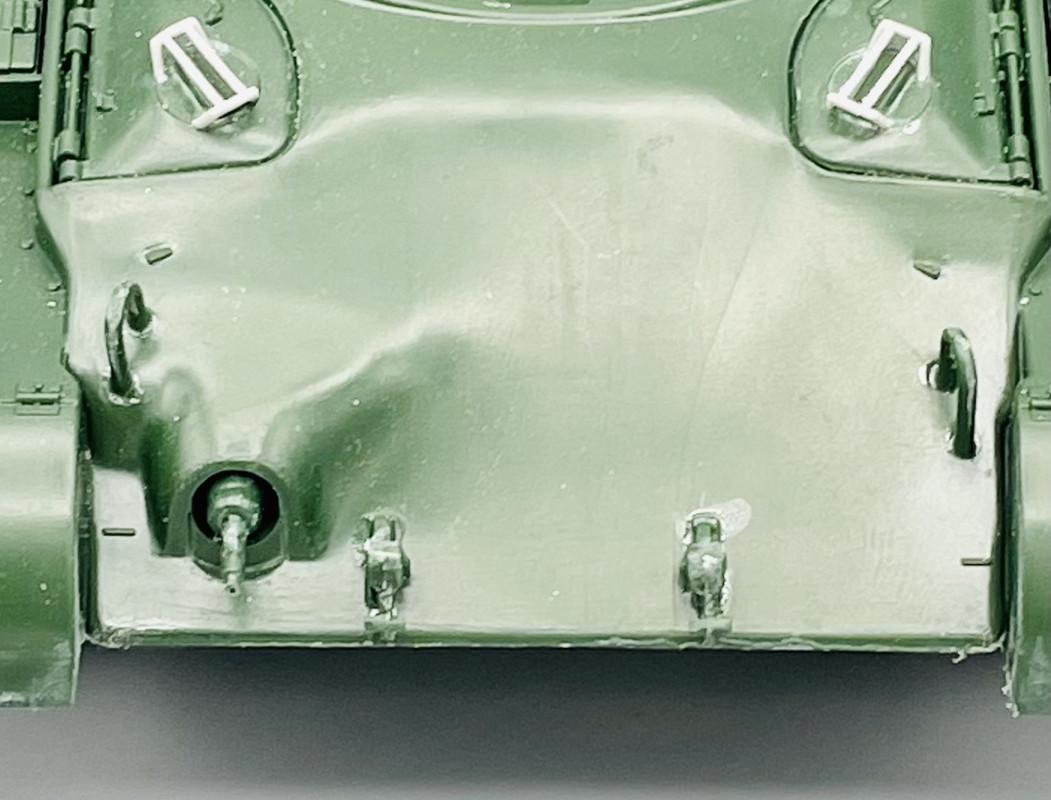

2363-BAB3-BDF4-4-AF3-9-CF8-B27-DF8-FF11-

Not much longer until hull construction is done...

  • Like 1
Link to comment
Share on other sites

  • 2 weeks later...

I finally finished all the basic construction on the hull. It was pointed out to me elsewhere that the hull attachment point for the rear fender braces was inaccurate. So I modified them to look more like the real thing.

831-E1035-6-EEF-4663-A078-6935-AC7586-D3

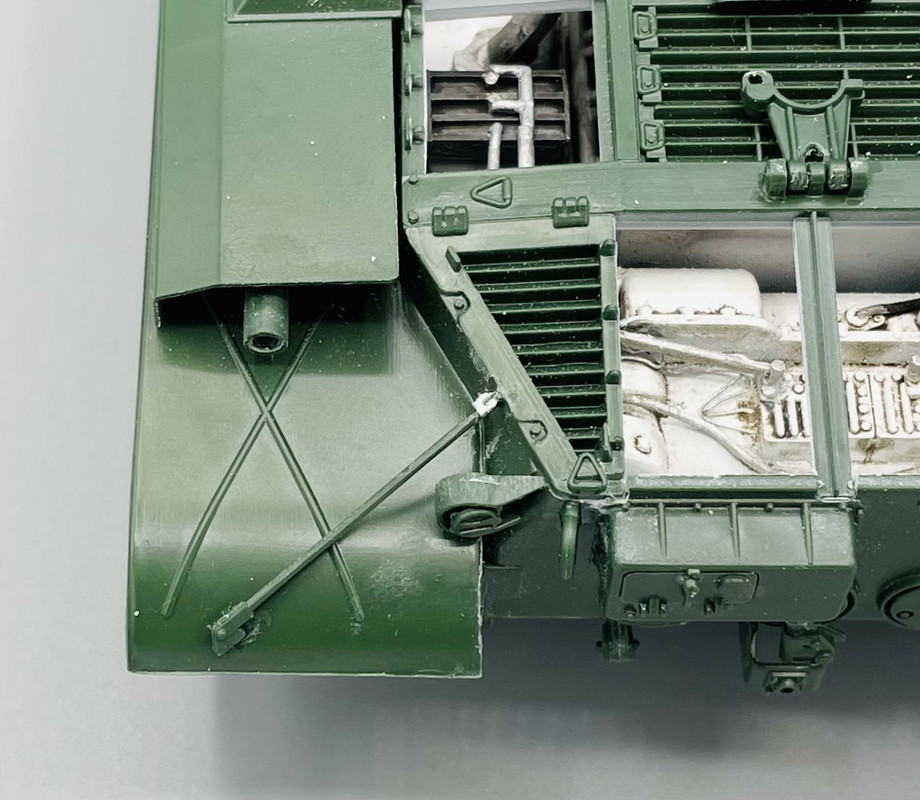

8253612-A-5-A06-4-F6-E-A967-F8-C5-DE6-B6

And I added all of the little bits to the front of the hull

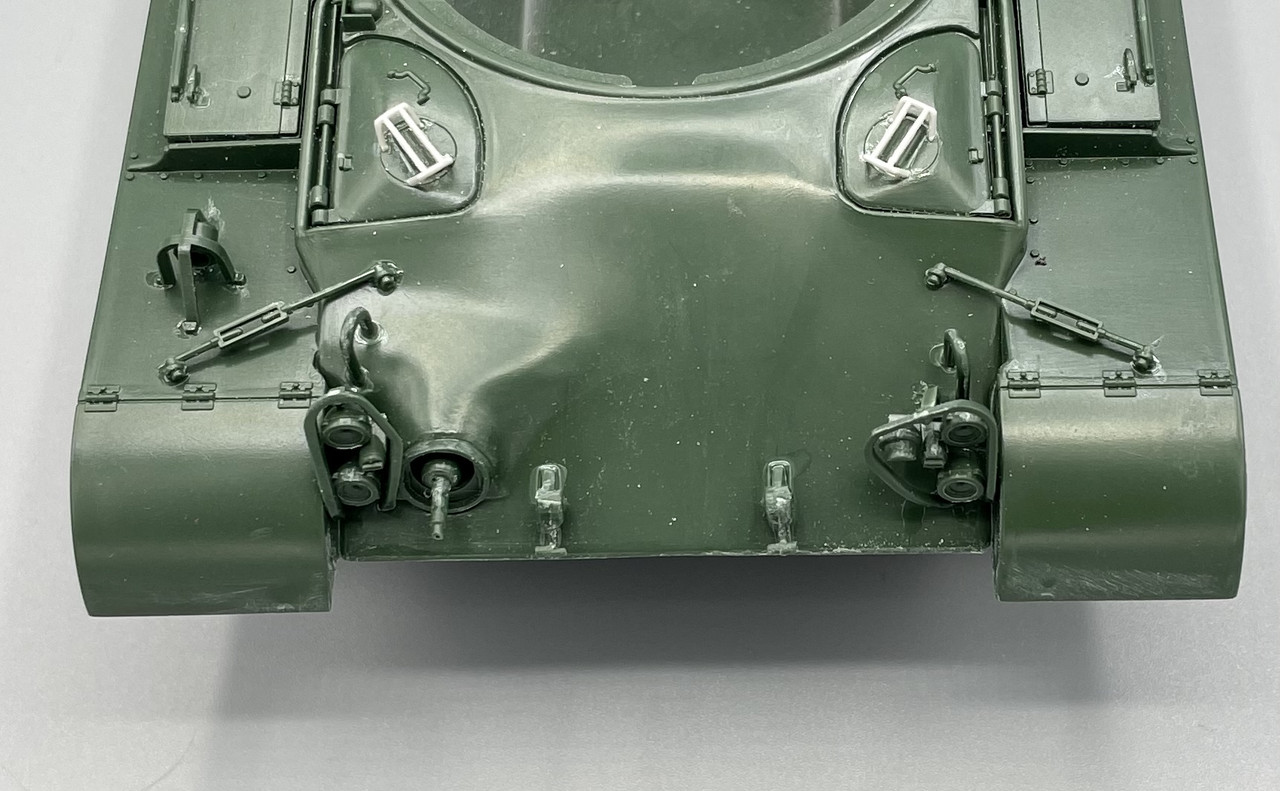

09548650-0396-4-F86-B063-580-B2-C43383-A

Now I just need to add the cast armor texturing and casting marks to the hull

  • Like 1
Link to comment
Share on other sites

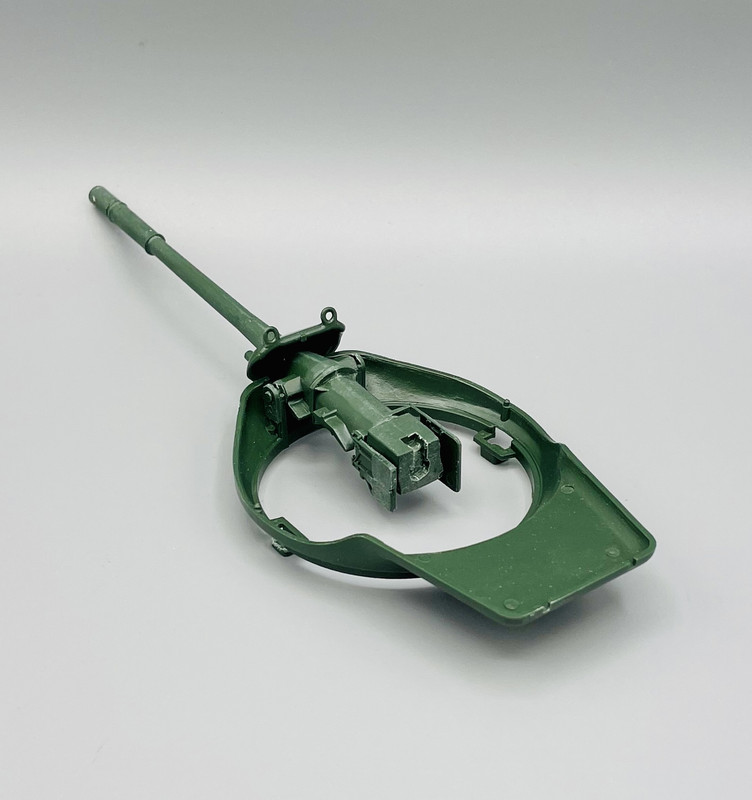

Small progress on the turret. Over the past few days I assembled the main gun, sanded the seams smooth then installed it into the turret bottom


1-D597-F9-B-2154-49-E7-85-EF-41-C310-AC6

And today I airbrushed the turret interior white...

4-E30315-C-0-FC4-4-D98-8819-8189-AAD8-BE

I just need to paint the breech block steel, sand off the paint on the surfaces to be glued, and assemble the turret halves... then this will start looking like a TANK!

  • Like 1
Link to comment
Share on other sites

Well, I just had to forge ahead this morning....

Breech block painted steel. Not sure if it’s accurate or not for the M47, but I like the look, and I’ve seen it before on other types. Besides, the turret hatches will be closed and no one will see it...

A828-FCBF-234-D-4674-BA85-D6-A8-E86-AA46

Then I glued the upper and lower turret halves together

B8-B616-CD-EC3-E-40-B7-9-F8-F-F85-E41686

and well, I just had to fit it on the hull

1-CAF494-F-C2-DB-44-C5-AEC2-8079050-D0-B

Now it looks like a tank!

Next up, adding all the little bits to the turret before the cast armor texturing

  • Like 1
Link to comment
Share on other sites

So more work on the turret this week. Firstly I puttied up the points where the cargo rails attach, since I won’t be using the kit parts. I also added some very thin rod styrene along the seam line where the turret halves go together to replicate the weld seam on the real turret. Today I sanded the putty smooth and using some “hotter” plastic cement and my finger nail to texture the weld seam bead.

EC8-C7165-6056-4-B66-A7-EE-A2-B5-F496574

F1-FA8732-6-FAA-4358-8-B69-0-BB72356-D0-

  • Like 1
Link to comment
Share on other sites

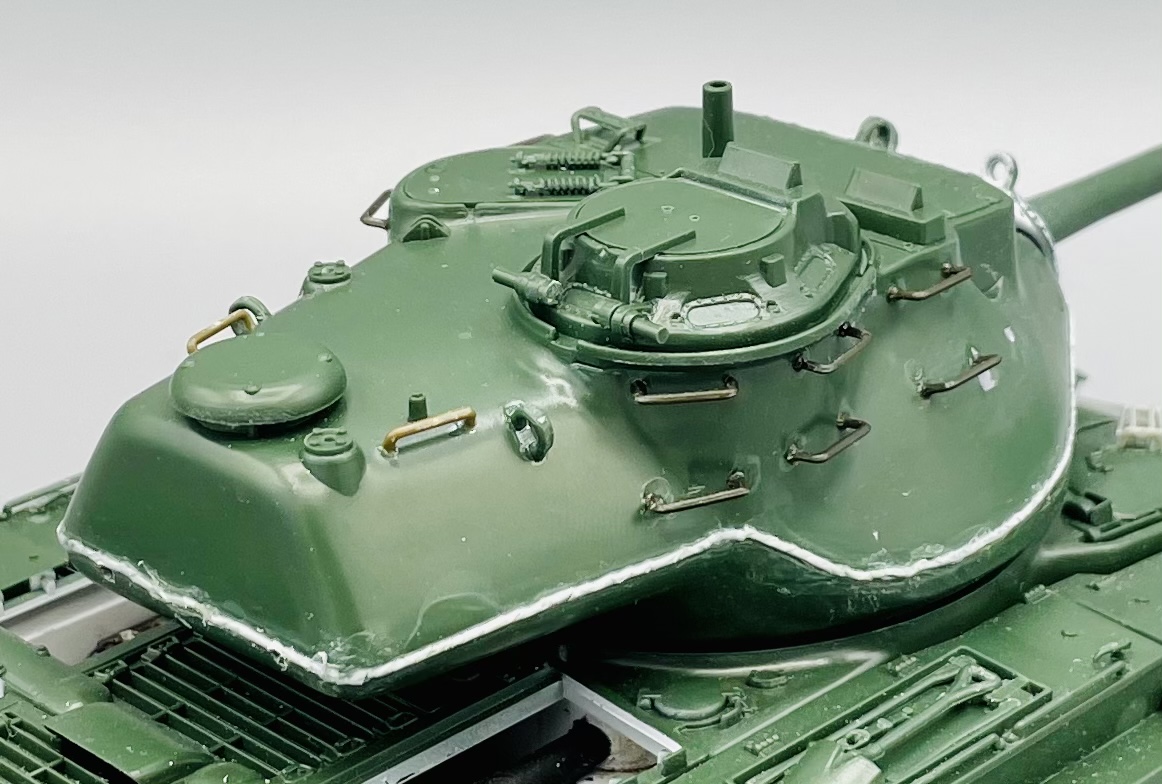

Yesterday I added on the early style grab rails on the turret sides using parts from my spares bin.

C4689-D8-D-959-A-4-CBD-8-BB5-FFFEACEBBA3

D565-F714-E51-A-4794-A0-A1-F96022-D3-B22

Now I just need to add the rod frame type guards on the commander’s and gunner’s sights and the backdating of the turret will be completed. Next up, cast armor texture.

  • Like 1
Link to comment
Share on other sites

A little more progress to post. Over on Armorama, it was pointed out to me that the turrets had some external “dimples” welded into the armor where the gun trunnions attach to the turret sides. So I cut some small pieces of tube styrene and glued them into the appropriate spots

1-CBA8188-77-E6-4-D5-D-AB9-C-724-A466608

Then I sanded them to a more scale thickness, doused them with liquid cement, and gave a bit of weld texture around the edges with a toothpick.

09-CA1-C2-D-CB31-4364-977-F-A11931-D9242

Now I can proceed to adding the cast armor texture where needed... nearly all of the turret and much of the front and rear hull...

Edited by Stikpusher
  • Like 1
Link to comment
Share on other sites

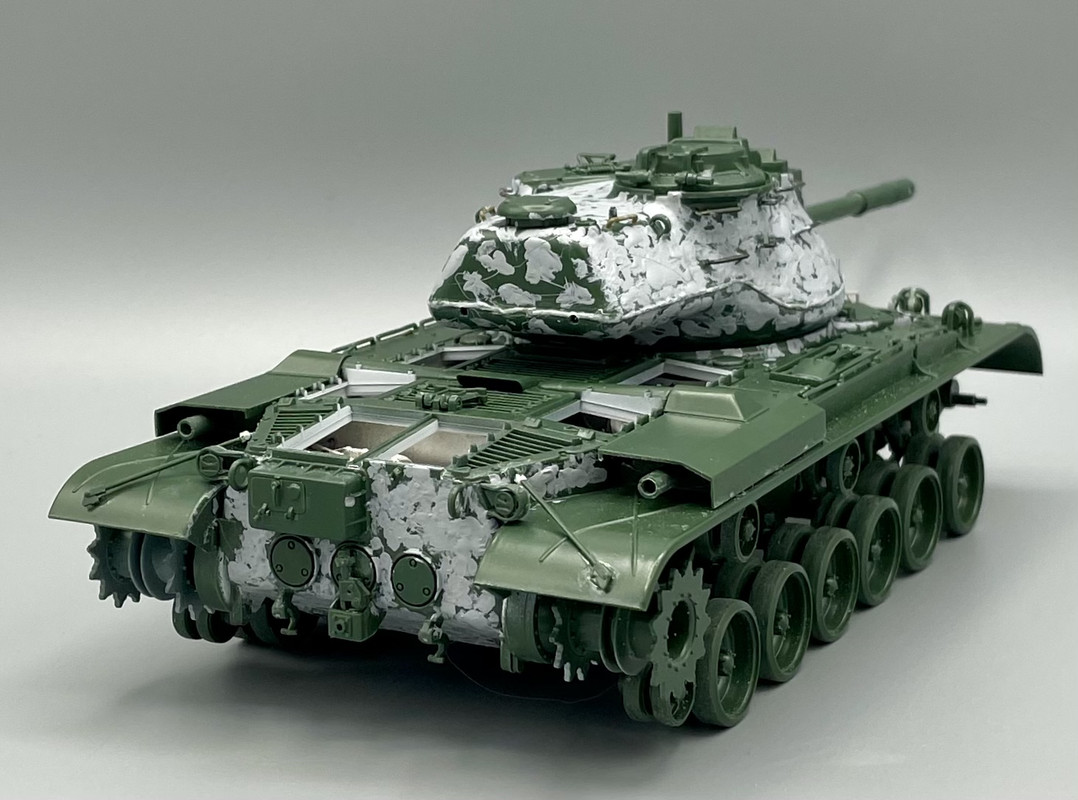

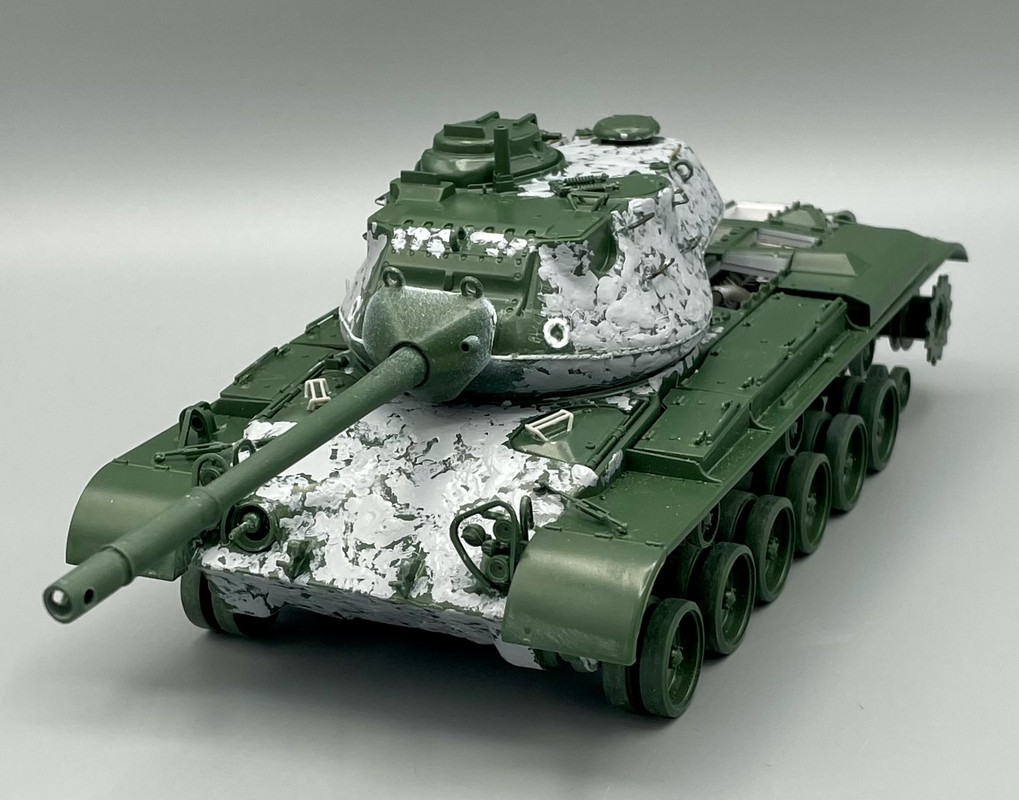

One more update- I finished adding the cast armor texture a bit more rapidly than I thought that I would using Mr Surfacer and a Microbrush.

7-F6-A2-D31-446-E-46-C8-823-A-4597-E629-

88-A0-CD04-8116-4-A17-AF33-F394-BB386856

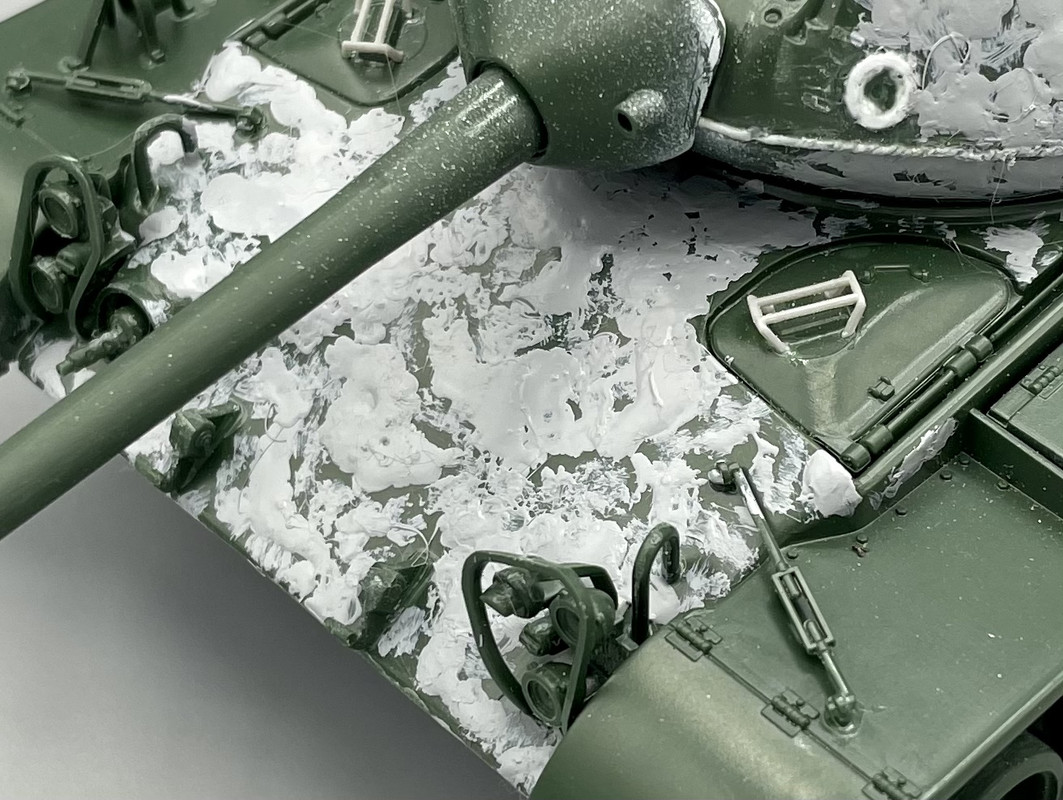

and a couple close ups

61-EDEB23-69-C1-4165-B5-C5-15-AE790-AA3-

145-C61-CC-4005-475-A-80-E1-317-CAFBA752

it should look good under a coat of paint...

This will be my last update on this until next week. Have plans for the weekend, so I won’t get any bench time.

  • Like 1
Link to comment
Share on other sites

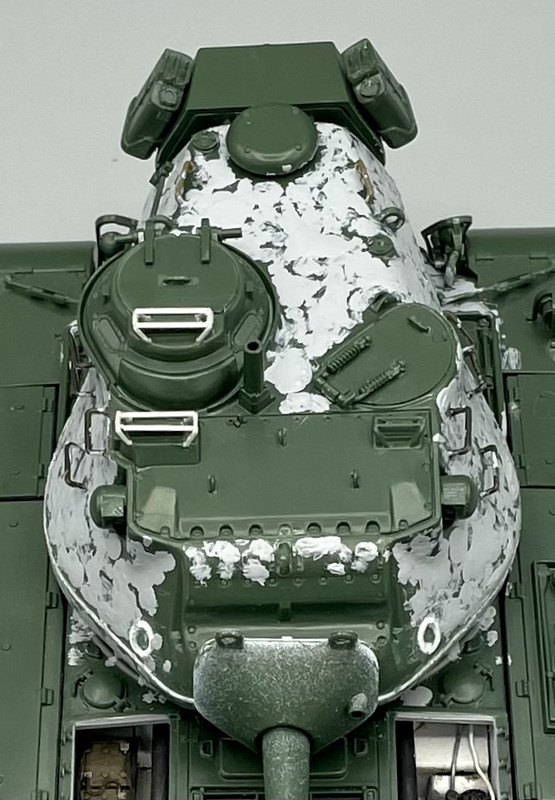

Well, the back dating of the kit is now complete. I added the wire cage style brush guards to the commander’s and gunner’s periscopes, modified the sledge to reverse its positioning, and then added the hatch handles, rangefinder housing lifting eyes, and rear turret stowage bin.

F7-F77709-2543-4-FA2-8-B57-A461-DE706080

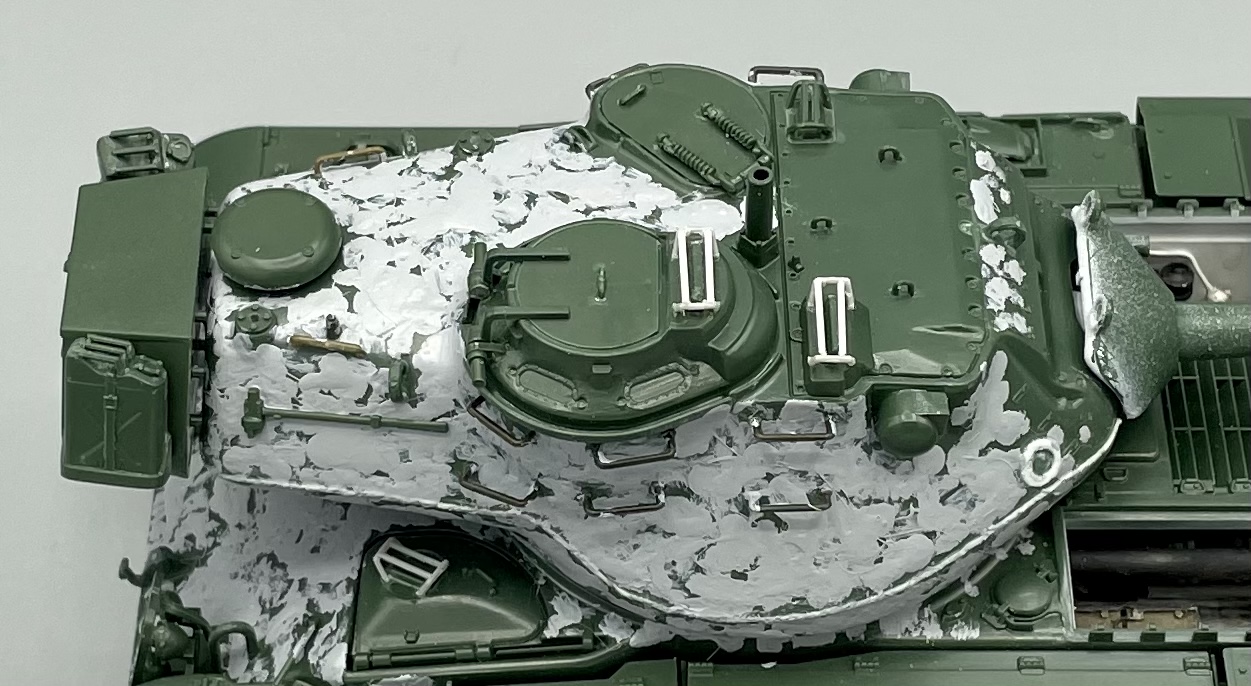

069369-EC-0-C50-45-A9-B3-AC-39-B7-A36360

53124-CCD-7-B93-4-EA5-A50-E-4705-D6-DA32


All I need to do now is add the mantlet dust cover and armor foundry casting marks

  • Like 3
Link to comment
Share on other sites

  • 4 weeks later...

I had a mishap while adding the casting marks on the first go, so I stopped, ordered some Archer raised resin decals and awaited their arrival before resuming work.

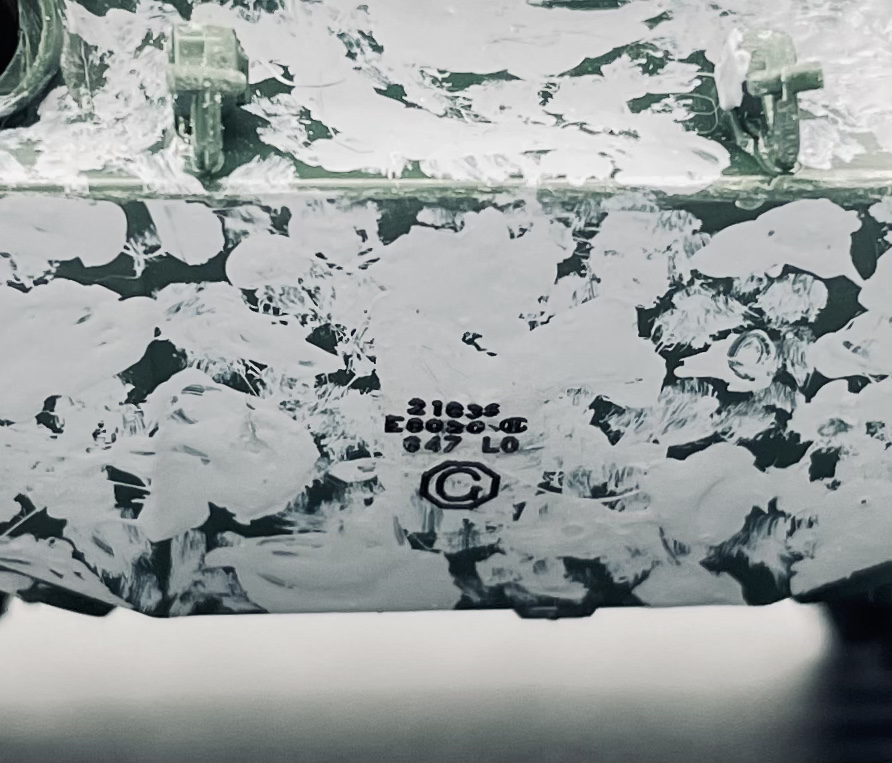

Monday and back in action with this one. I added some Archer raised resin decals casting marks to the turret and hull. We shall see how they look under a coat of paint soon.

A3-BF9-A96-6-CC9-4-BD6-8441-3-A18-D14942

621-DC2-DA-4-B2-B-4-F6-E-873-D-8-F5-A3-F

Yeah, these are for a Sherman, but most likely only a M47 fanatic would know that they are not proper for a Patton

  • Like 1
Link to comment
Share on other sites

Well, another day, another update:

I found one more casting mark in some photos over the bow gunners position, so I added another casting mark decal. Some tanks had ‘em, some didn’t. But I figured why not for mine. And then later I created the dust cover for the mantlet using white glue and tissue paper.

B0-E54-F6-C-8-FD2-4-BCB-98-F5-F17-A7434-

So next I have to come up with all the little clamps that hold the dust cover in place around the edges...

  • Like 2
Link to comment
Share on other sites

  • 4 weeks later...
  • 3 weeks later...

Thank you James. I just need to get this one wrapped up.

Yesterday I finally got around to making the brackets to hold down the mantlet dust cover

3-C4-C812-E-47-A3-4-FBC-BDC8-61-E3-C8-A1

94-CC0-C11-1-A98-4526-AB29-91-E3362-D674

B955-DDF9-7463-45-E4-B5-F6-755816-FF50-D

Almost ready for paint now. I just need to add a couple of things first.

  • Like 1
Link to comment
Share on other sites

Aside from adding the tracks and some antennas, basic construction is now complete. I replaced the kit .50 for the TC, with one from Dragon out of my spares drawers.

C4-E5-F2-E3-1-D14-4750-A6-FE-FD731-AA1-D

B4-A8-F258-E898-4334-9418-B7-FFF0-D72-DE

Painting can begin tomorrow…

  • Like 1
Link to comment
Share on other sites

I airbrushed on a coat of Humbrol enamel Matt Black for the base coat

C5-DBD688-EAE1-4-E06-B0-C6-78-C0-A33-B50

8-CD9-D5-DD-64-B2-48-FA-B587-2553-DBC9-B

And a couple close ups of the added armor texturing and Archer casting mark decals under the base coat paint. I think that they look pretty good

9-A4818-C3-D741-4323-AE17-E23-EE79-ED07-

BE553189-CBE2-4-CDD-AFAA-D2-C54-DEAF5-A2

Good guys wear black…

  • Like 1
Link to comment
Share on other sites

Woohoo! Olive Drab applied! I used Mission Models FS 33070 version of OD on this one. In all honesty, the more that I airbrush Mission Models, the less that I like them. Maybe it’s the dry climate here, but I get far better control and results with most every other brand. Anyways….

7-ED86736-CB74-410-B-AA9-B-259-FC21-AE14

ED1-C6-D76-120-C-469-E-930-D-F3542-E181-

and some close ups of the casting texture and marks decals under the paint

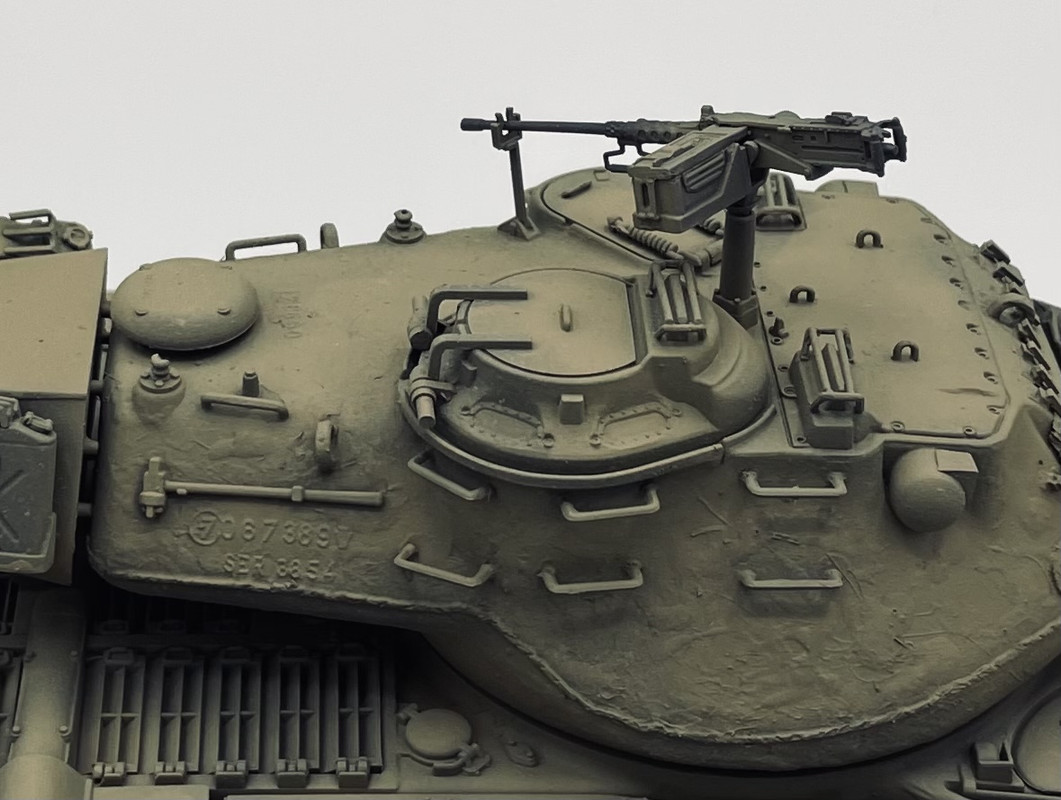

B35-DDE0-A-4-F3-A-484-A-BB60-87-EA159-F2

D469-C422-23-D2-449-D-8-F44-BD48663-B0-E

CDA0-BB9-B-D325-4847-8663-C614-E571-BB3-

More to come in a few days…

  • Like 1
Link to comment
Share on other sites

So yesterday was bit more work on the road to completion,

I painted the road wheel and return roller tires using Mission Models Rubber Black. Then I airbrushed on a coat of Future in preparation for decals

7-ECC0001-934-C-4-F36-8-CE3-9134090637-C

Then I had to give the tracks a test fit…

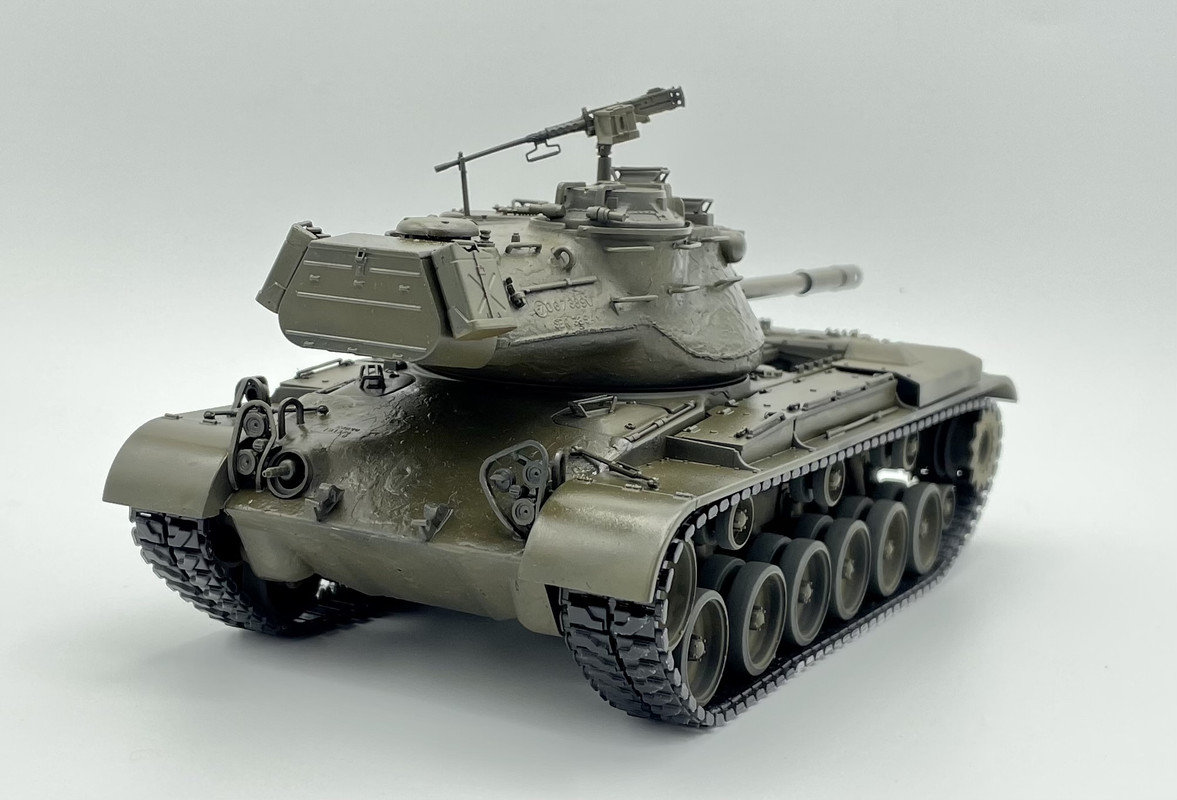

A92-CE7-DF-8-AD3-4517-9401-BABC73-C2-A93

Decals coming soon…

  • Like 1
Link to comment
Share on other sites

Thank you Jim. It’s getting there.

Link to comment
Share on other sites

And the decals are now on! Not that many, even if some are a bit large and gaudy.

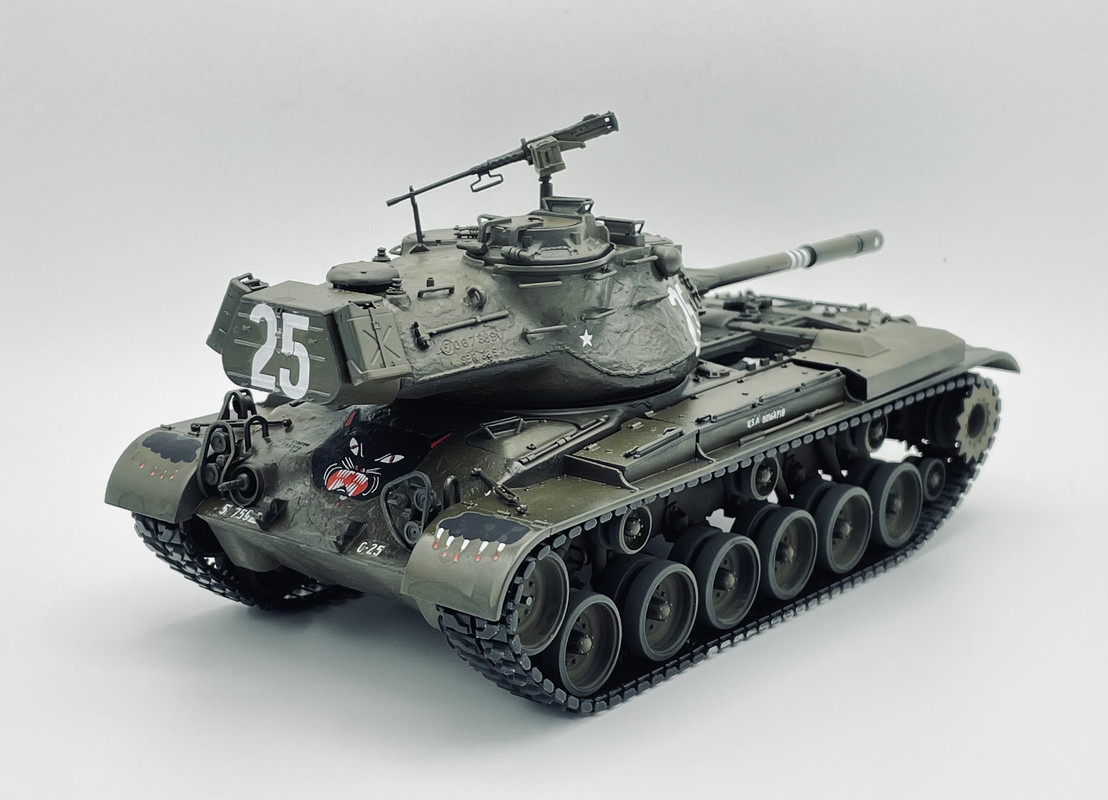

B3923-F13-3215-4-B13-9-CF5-47-BE08-D6-A2

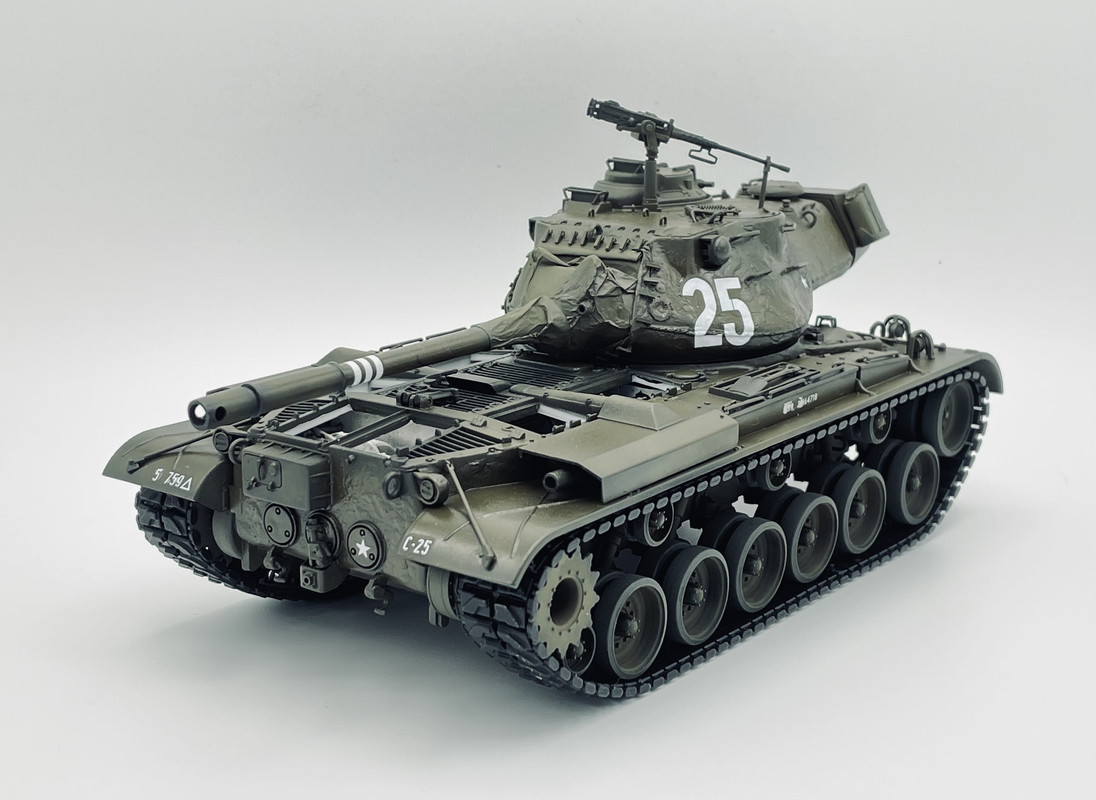

AC12-FD72-1-C34-495-B-A8-AB-977-E81-F4-C

These Star Decals are a bit thick and matt in finish. It’s taken a few doses of Solvaset to get the larger ones to conform to the texturing.

  • Like 2
